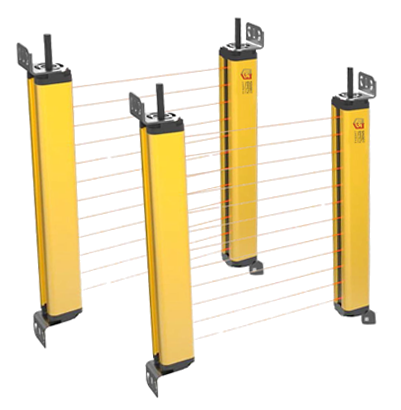

| ·采用循環CPU自檢技術，當自身出現故障時（如光源不同步；光強度不夠；CPU出錯； 發射電路短路、斷路等）光柵能確保不向所控制的設備發出錯誤的信號，安全性能卓越。 ·采用光同步技術，發射端與接收端之間無需導線連接，適合遠距離安裝，接線簡單，也可以采用線同步技術，增強抗電磁干擾能?。 ·采用輸出過載保護和短路保護功能，當輸出過載或短路時，光柵將進?保護狀態。 ·采用單路或雙路獨立OSSD冗余輸出，可直接驅動安全繼電器和安全PLC，確保光柵運行 更加可靠。 ·可根據客戶要求訂制：自動屏蔽和固定屏蔽功能。 |
| ▊ | 規格型號表 |
LE2-10系列（手指保護型） | LE2-20系列（手掌保護型） | LE2-40系列（手臂/人保護型） | ||||||
14分辨率 | 25分辨率 | 45分辨率 | ||||||
光柵型號 | 總高度 | 保護高度 | 光柵型號 | 總高度 | 保護高度 | 光柵型號 | 總高度 | 保護高度 |
LE2-10-0080 | 106mm | 80mm | LE2-20-0080 | 106mm | 80mm | LE2-40-0160 | 186mm | 160mm |
LE2-10-0100 | 126mm | 100mm | LE2-20-0120 | 146mm | 120mm | LE2-40-0240 | 266mm | 240mm |
LE2-10-0120 | 146mm | 120mm | LE2-20-0160 | 186mm | 160mm | LE2-40-0320 | 346mm | 320mm |
LE2-10-0140 | 166mm | 140mm | LE2-20-0200 | 226mm | 200mm | LE2-40-0400 | 426mm | 400mm |
LE2-10-0160 | 186mm | 160mm | LE2-20-0240 | 266mm | 240mm | LE2-40-0480 | 506mm | 480mm |
LE2-10-0180 | 206mm | 180mm | LE2-20-0280 | 306mm | 280mm | LE2-40-0560 | 586mm | 560mm |
LE2-10-0200 | 226mm | 200mm | LE2-20-0320 | 346mm | 320mm | LE2-40-0640 | 666mm | 640mm |
LE2-10-0220 | 246mm | 220mm | LE2-20-0360 | 386mm | 360mm | LE2-40-0720 | 746mm | 720mm |
LE2-10-0240 | 266mm | 240mm | LE2-20-0400 | 426mm | 400mm | LE2-40-0800 | 826mm | 800mm |
LE2-10-0260 | 286mm | 260mm | LE2-20-0440 | 466mm | 440mm | LE2-40-0880 | 906mm | 880mm |
LE2-10-0280 | 306mm | 280mm | LE2-20-0480 | 506mm | 480mm | LE2-40-0960 | 986mm | 960mm |
LE2-10-0300 | 326mm | 300mm | LE2-20-0520 | 546mm | 520mm | LE2-40-1040 | 1066mm | 1040mm |
LE2-10-0320 | 346mm | 320mm | LE2-20-0560 | 586mm | 560mm | LE2-40-1120 | 1146mm | 1120mm |
LE2-10-0340 | 366mm | 340mm | LE2-20-0600 | 626mm | 600mm | LE2-40-1200 | 1226mm | 1200mm |
LE2-10-0360 | 386mm | 360mm | LE2-20-0640 | 666mm | 640mm | LE2-40-1280 | 1306mm | 1280mm |
LE2-10-0380 | 406mm | 380mm | LE2-20-0680 | 706mm | 680mm | LE2-40-1360 | 1386mm | 1360mm |
LE2-10-0400 | 426mm | 400mm | LE2-20-0720 | 746mm | 720mm | LE2-40-1440 | 1466mm | 1440mm |
LE2-10-0420 | 446mm | 420mm | LE2-20-0760 | 786mm | 760mm | LE2-40-1520 | 1546mm | 1520mm |
LE2-10-0440 | 466mm | 440mm | LE2-20-0800 | 826mm | 800mm | LE2-40-1600 | 1626mm | 1600mm |
LE2-10-0460 | 486mm | 460mm | LE2-20-0840 | 866mm | 840mm | LE2-40-1680 | 1706mm | 1680mm |
LE2-10-0480 | 506mm | 480mm | LE2-20-0880 | 906mm | 880mm | LE2-40-1760 | 1786mm | 1760mm |
LE2-10-0500 | 526mm | 500mm | LE2-20-0920 | 946mm | 920mm | LE2-40-1840 | 1866mm | 1840mm |
LE2-10-0520 | 546mm | 520mm | LE2-20-0960 | 986mm | 960mm | LE2-40-1920 | 1946mm | 1920mm |
LE2-10-0540 | 566mm | 540mm | LE2-20-1000 | 1026mm | 1000mm | LE2-40-2000 | 2026mm | 2000mm |
LE2-10-0560 | 586mm | 560mm | LE2-20-1040 | 1066mm | 1040mm | LE2-40-2080 | 2106mm | 2080mm |
LE2-10-0580 | 606mm | 580mm | LE2-20-1080 | 1106mm | 1080mm | LE2-40-2160 | 2186mm | 2160mm |
LE2-10-0600 | 626mm | 600mm | LE2-20-1120 | 1146mm | 1120mm | LE2-40-2240 | 2266mm | 2240mm |
LE2-10-0620 | 646mm | 620mm | LE2-20-1160 | 1186mm | 1160mm | LE2-40-2320 | 2346mm | 2320mm |
LE2-10-0640 | 666mm | 640mm | LE2-20-1200 | 1226mm | 1200mm | LE2-40-2400 | 2426mm | 2400mm |
LE2-10-0660 | 686mm | 660mm | LE2-20-1240 | 1266mm | 1240mm | LE2-40-2480 | 2506mm | 2480mm |
LE2-10-0680 | 706mm | 680mm | LE2-20-1280 | 1306mm | 1280mm | LE2-40-2560 | 2586mm | 2560mm |
LE2-10-0700 | 726mm | 700mm | LE2-20-1320 | 1346mm | 1320mm | / | / | / |
LE2-10-0720 | 746mm | 720mm | LE2-20-1360 | 1386mm | 1360mm | / | / | / |
LE2-10-0740 | 766mm | 740mm | LE2-20-1400 | 1426mm | 1400mm | / | / | / |
LE2-10-0760 | 786mm | 760mm | LE2-20-1440 | 1466mm | 1440mm | / | / | / |
LE2-10-0780 | 806mm | 780mm | LE2-20-1480 | 1506mm | 1480mm | / | / | / |
LE2-10-0800 | 826mm | 800mm | LE2-20-1520 | 1546mm | 1520mm | / | / | / |
LE2-10-0820 | 846mm | 820mm | LE2-20-1560 | 1586mm | 1560mm | / | / | / |
LE2-10-0840 | 866mm | 840mm | LE2-20-1600 | 1626mm | 1600mm | / | / | / |
LE2-10-0860 | 886mm | 860mm | LE2-20-1640 | 1666mm | 1640mm | / | / | / |
LE2-10-0880 | 906mm | 880mm | LE2-20-1680 | 1706mm | 1680mm | / | / | / |
LE2-10-0900 | 926mm | 900mm | LE2-20-1720 | 1746mm | 1720mm | / | / | / |
LE2-10-0920 | 946mm | 920mm | LE2-20-1760 | 1786mm | 1760mm | / | / | / |
LE2-10-0940 | 966mm | 940mm | LE2-20-1800 | 1826mm | 1800mm | / | / | / |
LE2-10-0960 | 986mm | 960mm | LE2-20-1840 | 1866mm | 1840mm | / | / | / |
LE2-10-0980 | 1006mm | 980mm | LE2-20-1880 | 1906mm | 1880mm | / | / | / |
LE2-10-1000 | 1026mm | 1000mm | LE2-20-1920 | 1946mm | 1920mm | / | / | / |
LE2-10-1020 | 1046mm | 1020mm | LE2-20-1960 | 1986mm | 1960mm | / | / | / |
LE2-10-1040 | 1066mm | 1040mm | LE2-20-2000 | 2026mm | 2000mm | / | / | / |
LE2-10-1060 | 1086mm | 1060mm | LE2-20-2040 | 2066mm | 2040mm | / | / | / |
LE2-10-1080 | 1106mm | 1080mm | LE2-20-2080 | 2106mm | 2080mm | / | / | / |
LE2-10-1100 | 1126mm | 1100mm | LE2-20-2120 | 2146mm | 2120mm | / | / | / |
LE2-10-1120 | 1146mm | 1120mm | LE2-20-2160 | 2186mm | 2160mm | / | / | / |
LE2-10-1140 | 1166mm | 1140mm | LE2-20-2200 | 2226mm | 2200mm | / | / | / |
LE2-10-1160 | 1186mm | 1160mm | LE2-20-2240 | 2266mm | 2240mm | / | / | / |
LE2-10-1180 | 1206mm | 1180mm | LE2-20-2280 | 2306mm | 2280mm | / | / | / |
LE2-10-1200 | 1226mm | 1200mm | LE2-20-2320 | 2346mm | 2320mm | / | / | / |
LE2-10-1220 | 1246mm | 1220mm | LE2-20-2360 | 2386mm | 2360mm | / | / | / |
LE2-10-1240 | 1266mm | 1240mm | LE2-20-2400 | 2426mm | 2400mm | / | / | / |
LE2-10-1260 | 1286mm | 1260mm | LE2-20-2440 | 2466mm | 2440mm | / | / | / |
LE2-10-1280 | 1306mm | 1280mm | LE2-20-2480 | 2506mm | 2480mm | / | / | / |
LE2-10-1300 | 1326mm | 1300mm | LE2-20-2520 | 2546mm | 2520mm | / | / | / |
LE2-10-1320 | 1346mm | 1320mm | LE2-20-2560 | 2586mm | 2560mm | / | / | / |
LE2-10-1340 | 1366mm | 1340mm | / | / | / | / | / | / |
LE2-10-1360 | 1386mm | 1360mm | / | / | / | / | / | / |
LE2-10-1380 | 1406mm | 1380mm | / | / | / | / | / | / |
LE2-10-1400 | 1426mm | 1400mm | / | / | / | / | / | / |
LE2-10-1420 | 1446mm | 1420mm | / | / | / | / | / | / |
LE2-10-1440 | 1466mm | 1440mm | / | / | / | / | / | / |
LE2-10-1460 | 1486mm | 1460mm | / | / | / | / | / | / |
LE2-10-1480 | 1506mm | 1480mm | / | / | / | / | / | / |
LE2-10-1500 | 1526mm | 1500mm | / | / | / | / | / | / |
LE2-10-1520 | 1546mm | 1520mm | / | / | / | / | / | / |
LE2-10-1540 | 1566mm | 1540mm | / | / | / | / | / | / |
LE2-10-1560 | 1586mm | 1560mm | / | / | / | / | / | / |
LE2-10-1580 | 1606mm | 1580mm | / | / | / | / | / | / |
LE2-10-1600 | 1626mm | 1600mm | / | / | / | / | / | / |
▊型號說明
 |
示例： LE2-20-0520，即為光間距為20，保護高度為520mm，PNP輸出，直接出線的光同步單路輸出安全光柵 LE2-20-0520-NJ-XTD，即為光間距為20，保護高度為520mm，NPN輸出，接插件型的線同步雙路輸出安全光柵 |
▊技術參數
保護高度（按光束間距而定） | |
10mm | 80mm~ 1600mm |
20mm | 80mm~2560mm |
40mm | 160mm~2560mm |
指標參數 | |
保護范圍 | 0.2~2m |
分辨率 | 14mm， 25mm， 45mm |
同步類型 | 光學同步、線同步 |
電氣參數 | |
工作電壓 | 24VDC±10% |
響應時間 | 4~58ms |
最大功率 | 發射器， 接收器各5W |
輸出信號 | 1*PNP/1*NPN；2*PNP/2*NPN |
內部保護 | 電源極性保護，輸出短路保護，輸出過載保護 |
最大輸出電流 | 200mA |
防護等級 | IP65 |
工作溫度 | -10℃~+55℃ |
儲存溫度 | -25℃~+70℃ |
連接類型 | 航空插頭接插引線式或直接出線式 |
外殼截面尺寸 | 27mmx28mm |
安裝方式 | 提供L型兩頭安裝?架安裝或背后通槽安裝 |

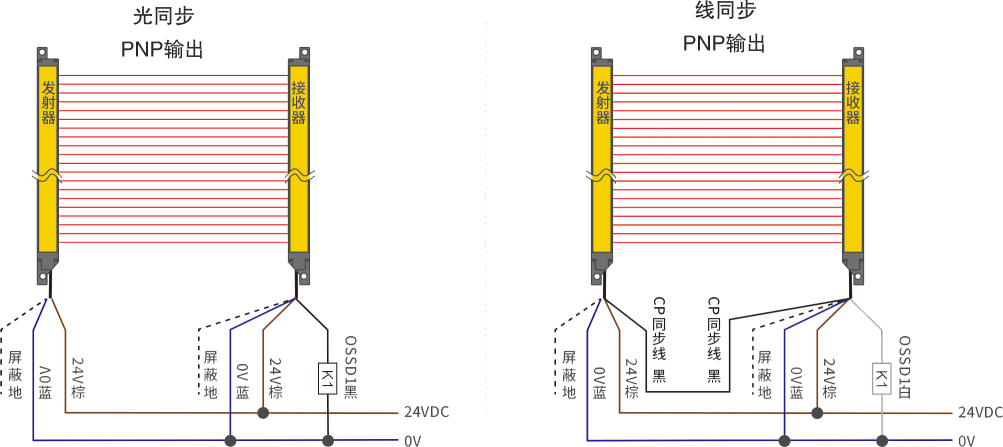

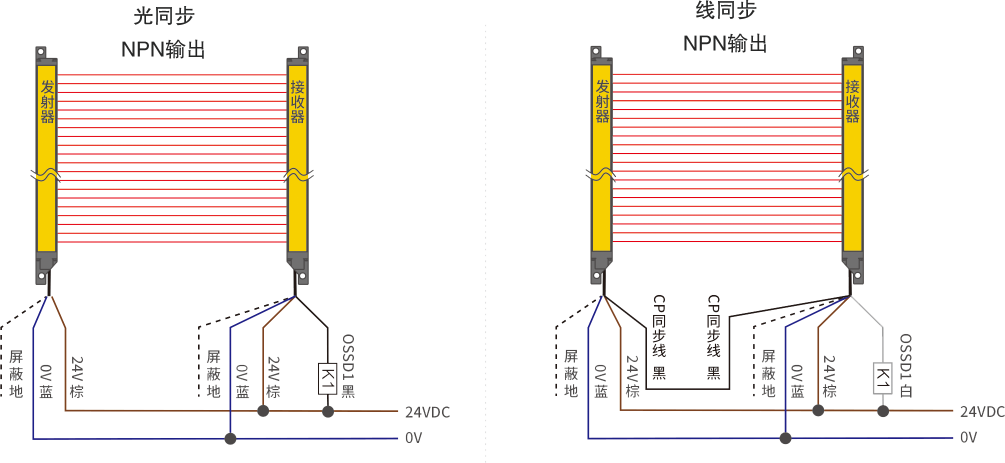

| ▊ | 接線圖 |
 |  |

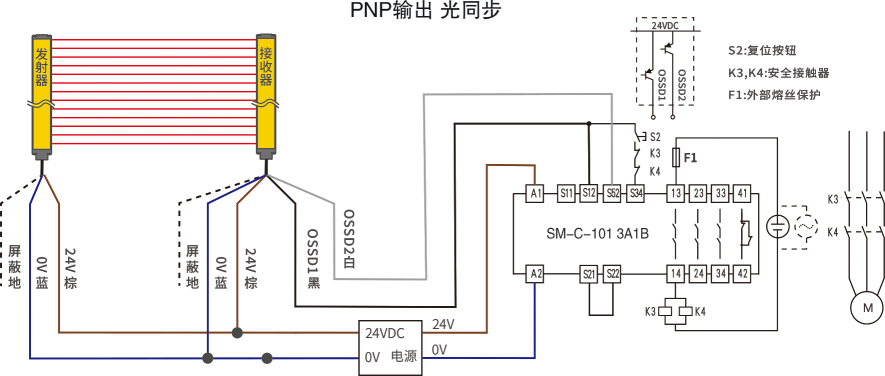

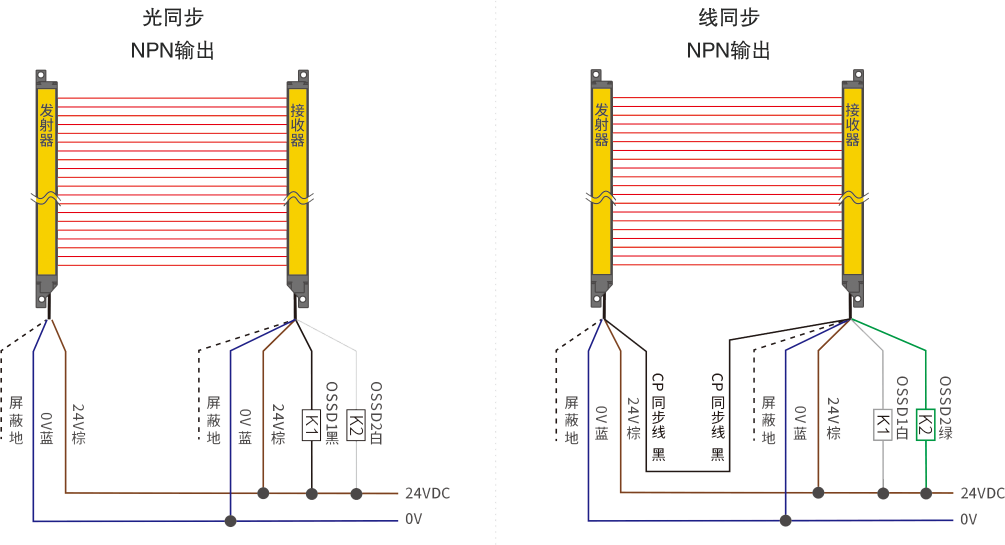

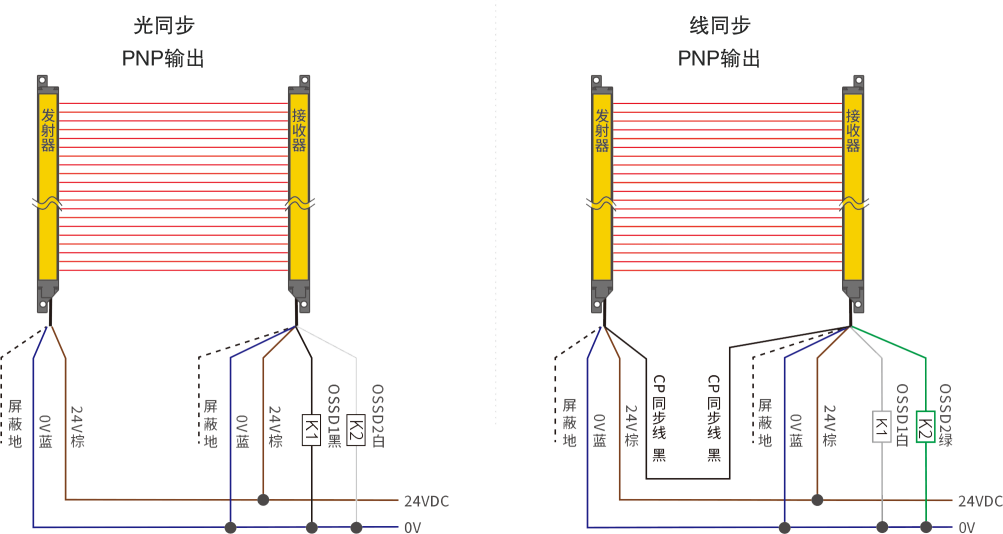

| ▊ | 雙回路輸出接線圖 |
 |  |
注：雙路安全輸出、匹配安全控制器模塊可以使系統達到4級最?安全回路

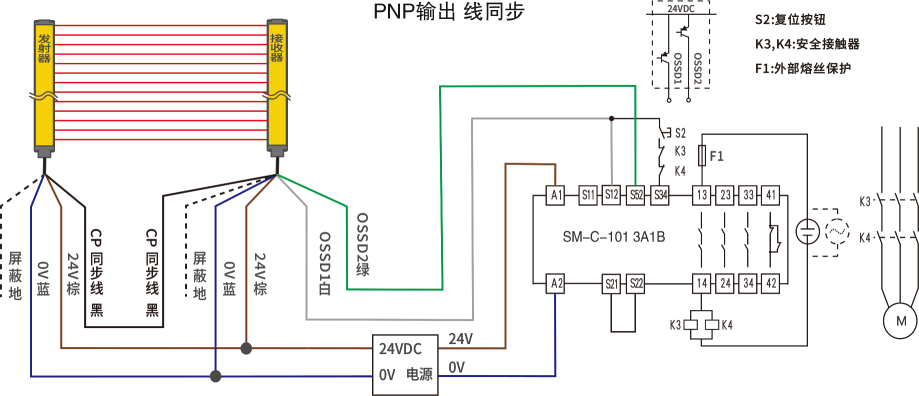

| ▊ | 安全光柵與安全控制器模塊的接線圖例 |
 |  |
注：雙路獨?冗余安全輸出、匹配安全控制器模塊可以使系統達到4級最?安全回路 | |
| ▊ | 外型尺寸 |
 |
| ▊ | 附件信息 |
 |  |  |  | |||
型號 | LE2XLF-23-03 2芯3針電纜 | LE2XLJ-34-03 3芯4針電纜 | LE2XLF-34-03 3芯4針電纜 | LE2XLJ-56-03 5芯6針電纜 | LE2ZJ-A-S | LE2ZJ-A-C |
光同步發射器線纜 | 光同步接收器線纜 | 線同步線發射器纜 | 線同步接收器線纜 | / | / | |

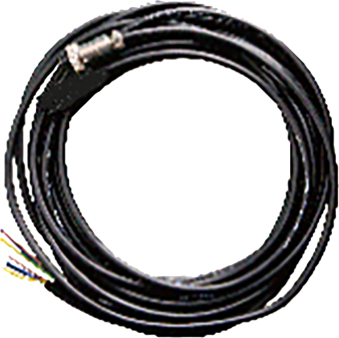

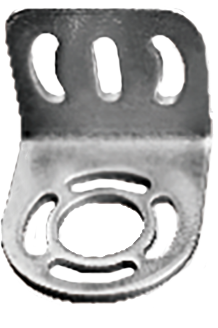

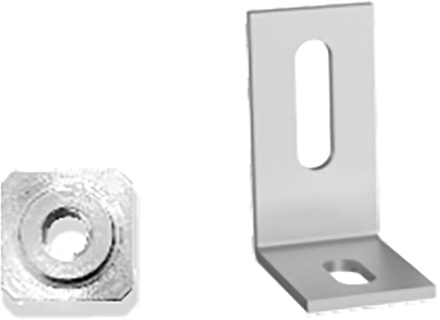

名稱 | 光同步電纜線 | 線同步電纜線 | 上下兩端安裝支架 | 側面長槽安裝配件 | ||
長度 | 標配3米，其他長度可定制 | 標配3米，其他長度可定制 | / | / | ||
數量 | 1根 | 1根 | 1套 | 1套（選配） | ||
出廠配置 | √ | √ | / | / | ||
說明 | 每套光柵包含發射端，接收端各一根，直接出線型電纜線二根（各三米），1套上下兩端安裝支架 | |||||
