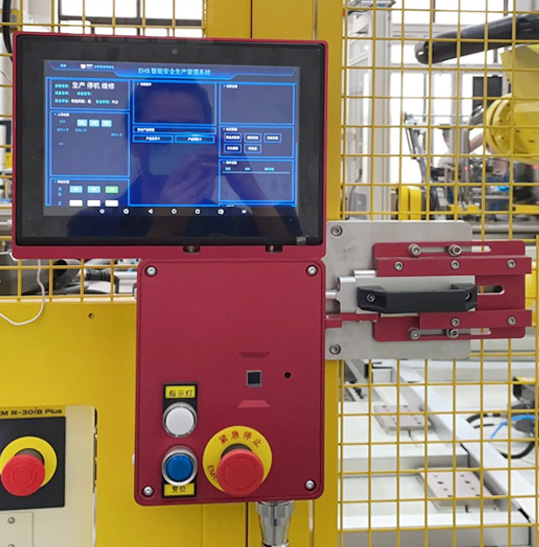

AI BOX intelligent security door lock | |
·Only authorized facial/fingerprint personnel are allowed to unlock ·Unauthorized personnel are unable to open the door ·The safety door lock reaches Ple, and the safety system can reach PLd ·Powerful warning function ·Behavioral analysis big data ·The shell contains standard 22mm buttons, lights, or switch buttons ·Security level reaches PLe ·Can connect to IoT platforms and group intranet platforms | |
| ▊ | Selection categories |
Product Name | model | Safe input |

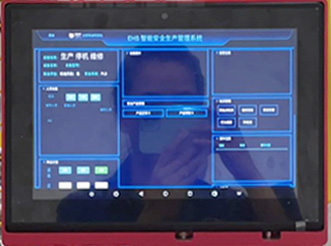

| 10 inch industrial touch screen Integrated PAD SDK package | Personnel Authorization Management Alarm voice control reminder Homework instructions and guidance |
 | AI BOX Security Door Lock Box Built in electromagnetic lock door lock Automatic LOTO locking function External Emergency stop button Reset button Indicator light | Multi functional integrated safety door box 2NC 1 million switch releases blue white |
| ▊ | AI BOX Technical Information |
 |
Wire number | definition | Wire number | definition |  |
01# | 24V+ | 10# | Emergency stop (2 # NC) | |
02# | 24V- | 11# | Reset (1 # NO) | |
03# | Door lock (1 # NC) | 12# | Reset (1 # NO) | |
04# | Door lock (1 # NC) | 13# | Door lock head monitoring (1 # NO) | |
05# | Door lock (2 # NC) | 14# | Door lock head monitoring (1 # NO) | |
06# | Door lock (2 # NC) | 15# | Door lock coil monitoring (1 # NO) | |
07# | Emergency stop (1 # NC) | 16# | Door lock coil monitoring (1 # NO) | |
08# | Emergency stop (1 # NC) | 17# | Reset indicator light | |
9# | Emergency stop (2 # NC) | 18# | Reset indicator light |

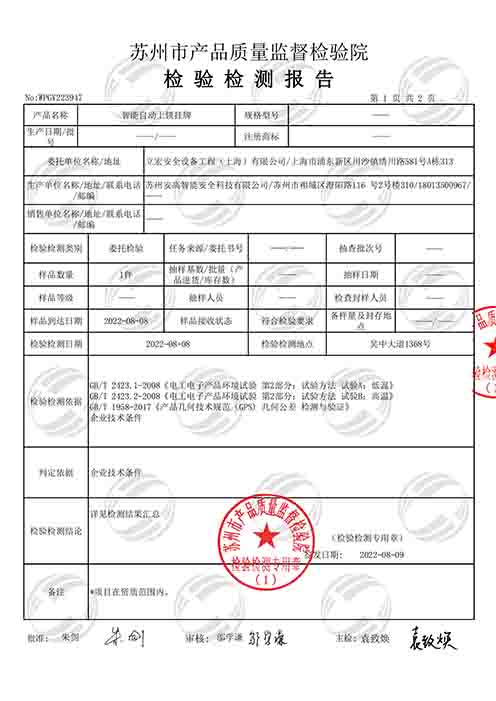

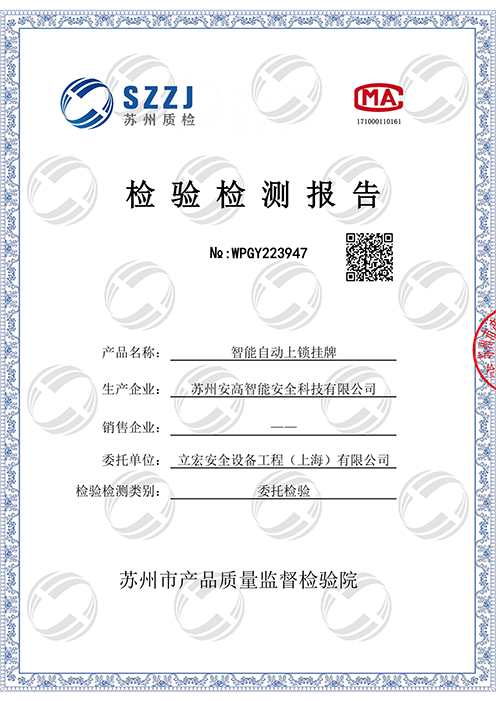

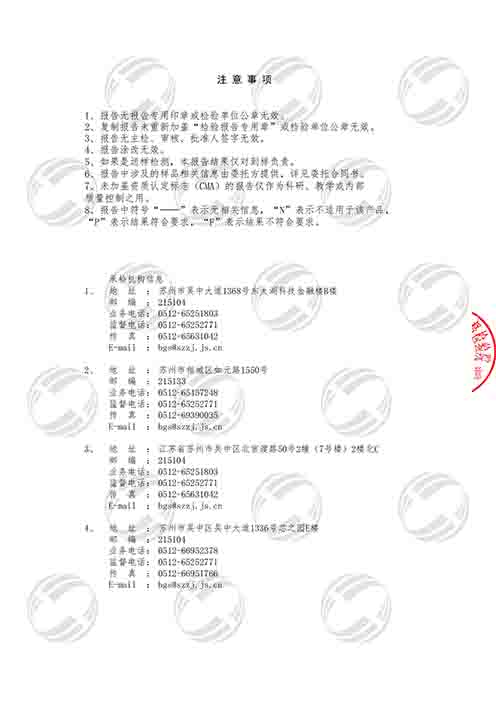

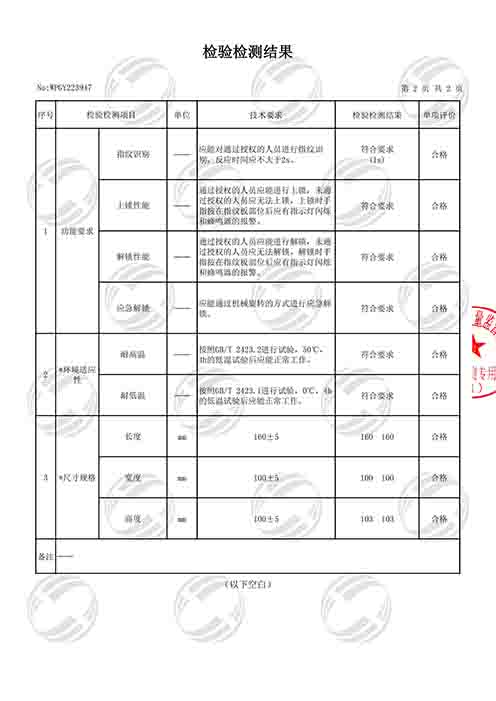

| ▊ | Intelligent Lockout and Tagout Inspection and Testing Report |
|
|  |  |

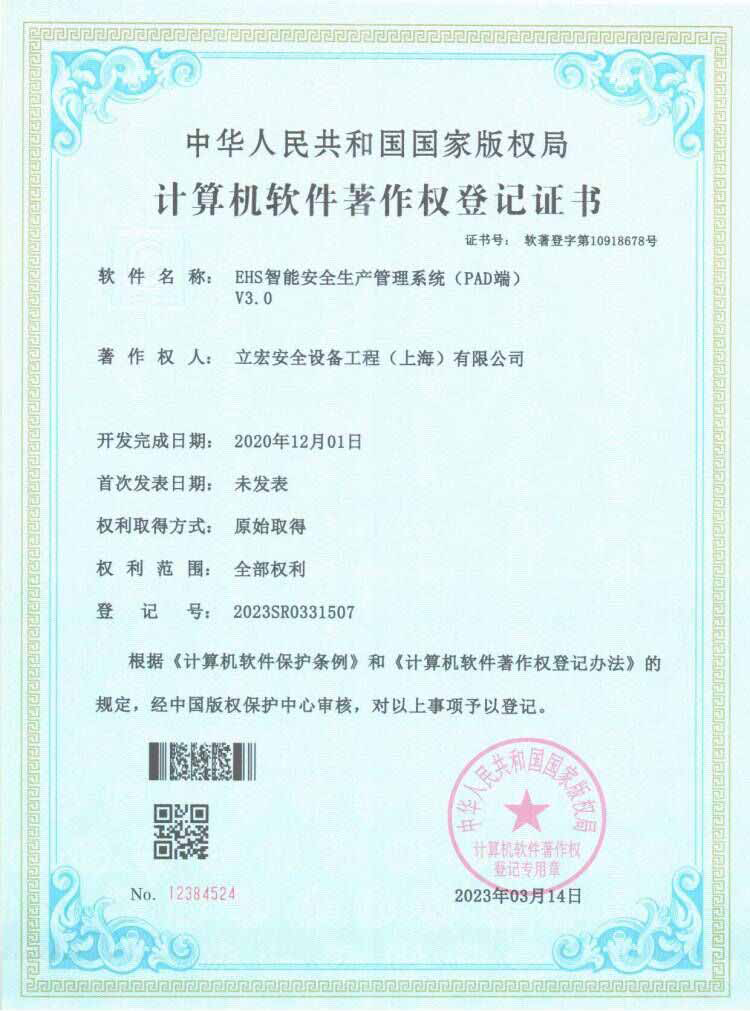

| ▊ Software Copyright Registration Certificate |
 |
