 | · OLM4101-3-270-5MOBased on the principle of pulsed laser ranging. · Angle is realized by rotating scanning.276° · The protection distance is 3 meters adjustable. · Support user customization16×3Groups of sectors with different shapes for safe output. · Can provide functional safety output |
| ▊ | Product introduction |
reserve · Provide real-time hazardous area detection · Irregular safety detection and protection up to 3m long. · Obstacle avoidance can be set according to the site environment. · Used in stop equipment that can safely output. |  |
 | Early warning area · The early warning area can be set to avoid obstacles according to the site environment. · Used in stop equipment that can safely output. |
| ▊ | specifications and models |
product name | model | Detection radius | Scanning angle | output form |
Safety laser scanner | OLM4101-3-270-5M series | 4m@1.8% reflectivity | 276° | PNP |
Vertical floor support | OLM4101-ZJ40 | Protect the bracket horizontally and implement the installation bracket. | ||
Power cord | ||||
Programming line | gift | |||
explain | ||||

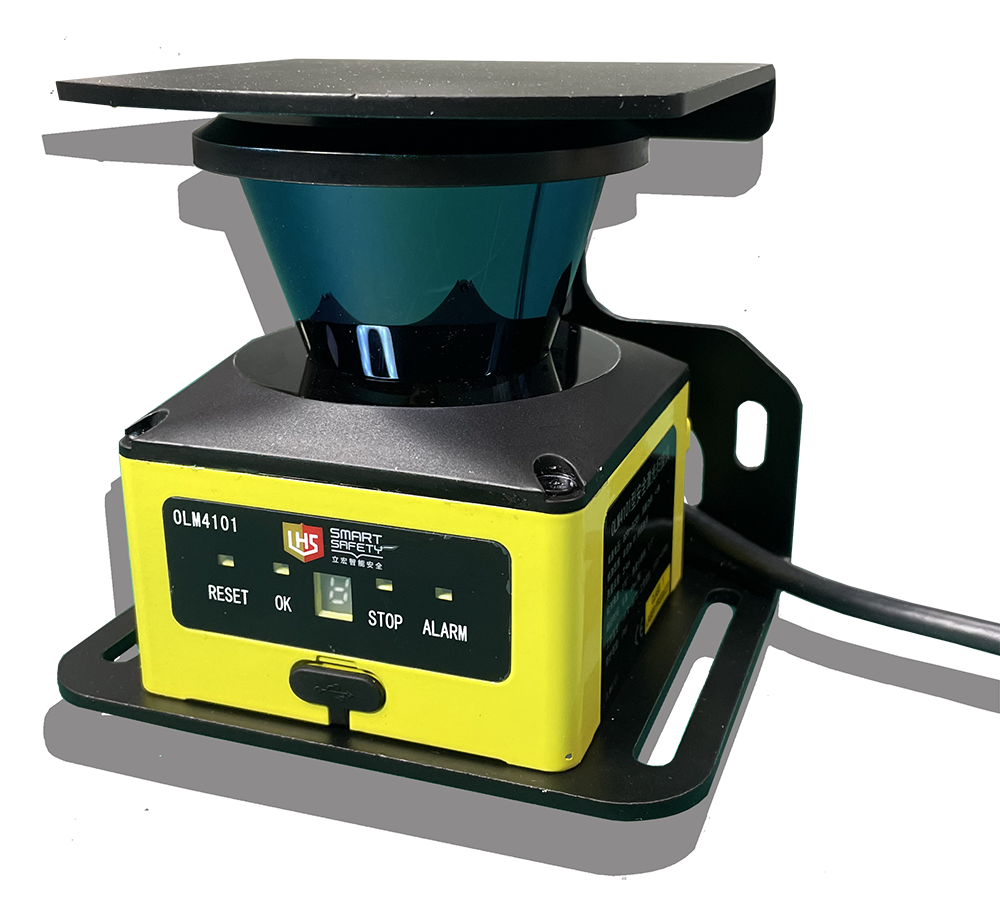

Laser scanner main body
| Floor mounting bracket
| Power cord
| Programming line
|

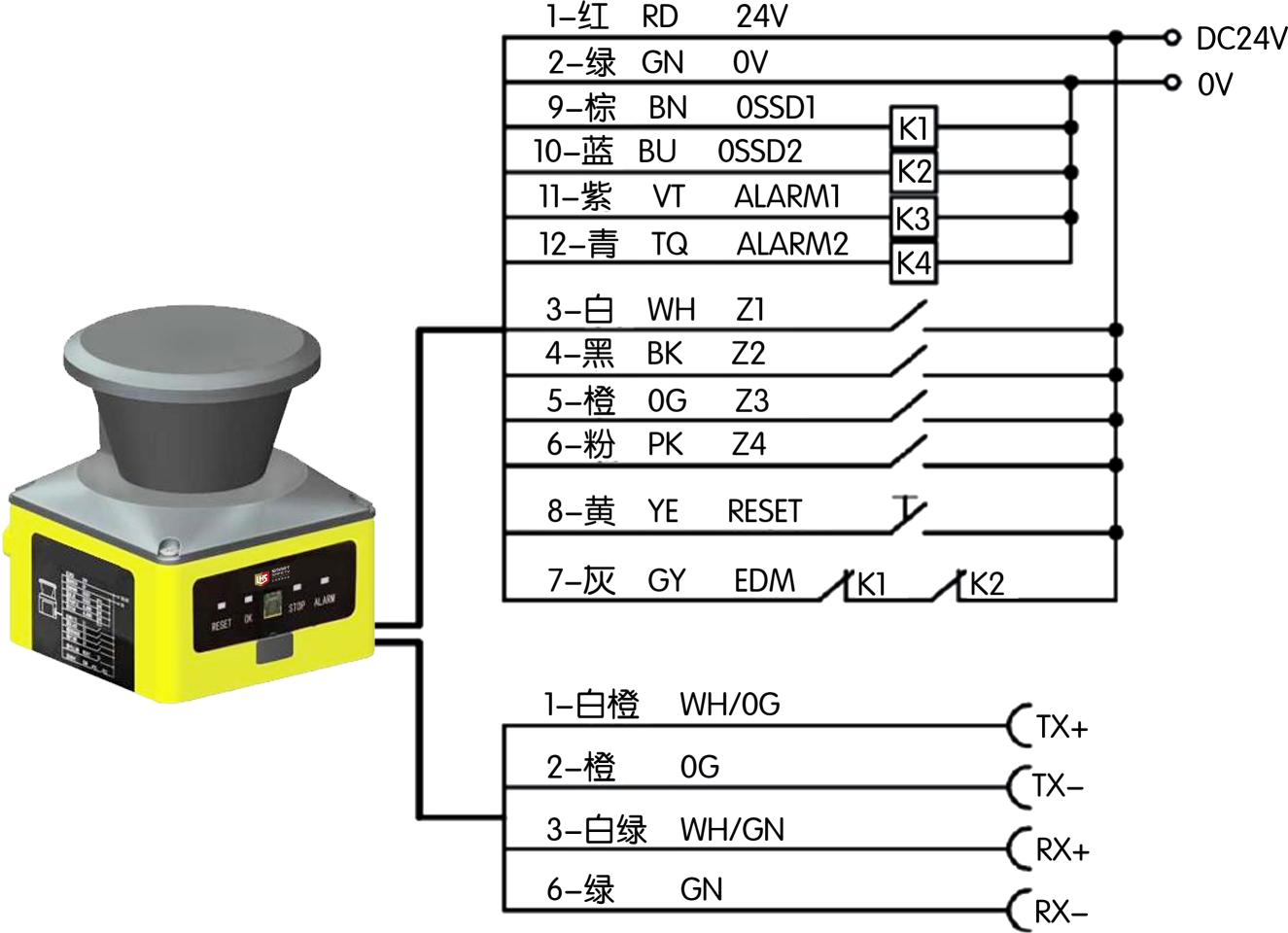

| ▊ | Typical wiring diagram |
| ▊ | technical parameter |
Safety data | |||
security level/phase | Type 3（IEC61496IEC61496） PLd（ISO13849ISO13849 | ||
Mean time to failure without danger Mttfd（year） | 22.6 | ||
Hourly failure probability PFHD(1/h） | 4.89E-07 | ||
Optical characteristics | |||
Laser light source | Wavelength 905n, a kind of laser products. | ||
Detection radius | 30m@10%reflectivity | ||
Scanning angle range | 276°/360° | Angular resolution | The default value is 0.12°@25Hz, which can be configured (minimum value is 0.06 @10Hz). |
Refresh frequency | 25Hz（Default, configurable） | ||
measurement error | ≤25mm（typical value） | repeatability | ±6mm@1sigma |
Electrical/mechanical parameters | |||
operating voltage | DC11V~DC28V | ||
Power-on start time | 8s（typical value） | ||
power consumption | 8W（typical value） | ||
output form | PNP output+Ethernet output | ||
outline dimension | 100×100×115mm | ||
Environmental characteristics | ||
ambient humidity | Working: -30℃~50℃ Storage: -40℃~70℃ | |
ambient humidity | Work: 35%RH~85%RH Storage: 35%RH~95%RH. | |
Anti-light interference | 80000Lux | |
resist the impact | Acceleration 10g；; Pulse duration: 16ms；; Collision times: three axes, each axis is 1000 10 times. | |
Vibration resistance | Frequency 10 Hz ~ 55 Hz; Amplitude: 0.35±0.05mm；; Scanning times: three axes, 20 times per axis. | |
the protection grades | IP67 | |
Electromagnetic compatibility（EMC） | EMI | EN61326-1：2013EN55011：2009+A1：2010 |
EMS | EN61326-1：2013EN61000-4-2：2009EN61000-4-3：2006+A1：2008+A2：2010 EN61000-4-4：2004+A1：2010EN61000-4-6：2009EN61000-4-8：2010 EN61000-4-11：2004 | |

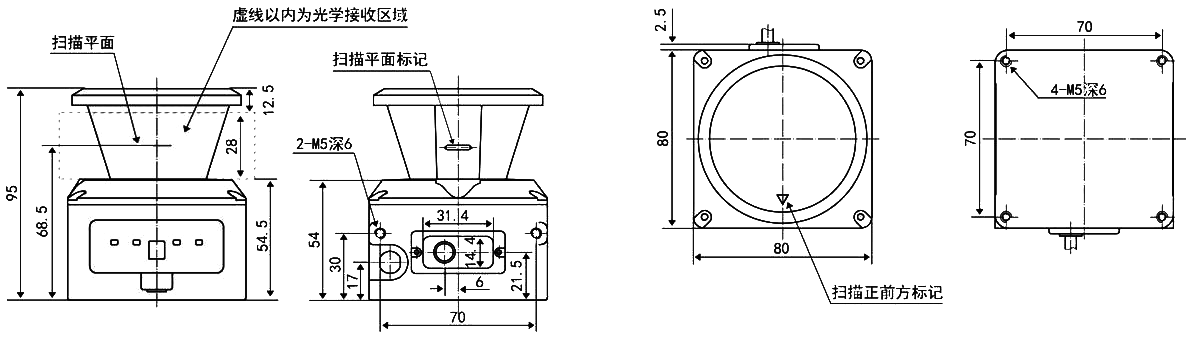

| ▊ | outline dimension |
